R9028LPFSSF

Low Profile Flush Mount 10x10 inch IP-67 Circularly Polarized RFID Antenna - FCC

  • Units Available: 663
List Price: $158.00
Low Profile Flush Mount 10x10 inch IP-67 Circularly Polarized RFID Antenna - FCC
Low Profile Flush Mount 10x10 inch IP-67 Circularly Polarized RFID Antenna - FCC
Low Profile Flush Mount 10x10 inch IP-67 Circularly Polarized RFID Antenna - FCC
Grey_arrow@2x Created with Sketch.
Created with Sketch.
R9028LPFSSF

Low Profile Flush Mount 10x10 inch IP-67 Circularly Polarized RFID Antenna - FCC

  • Units Available: 663
List Price: $158.00

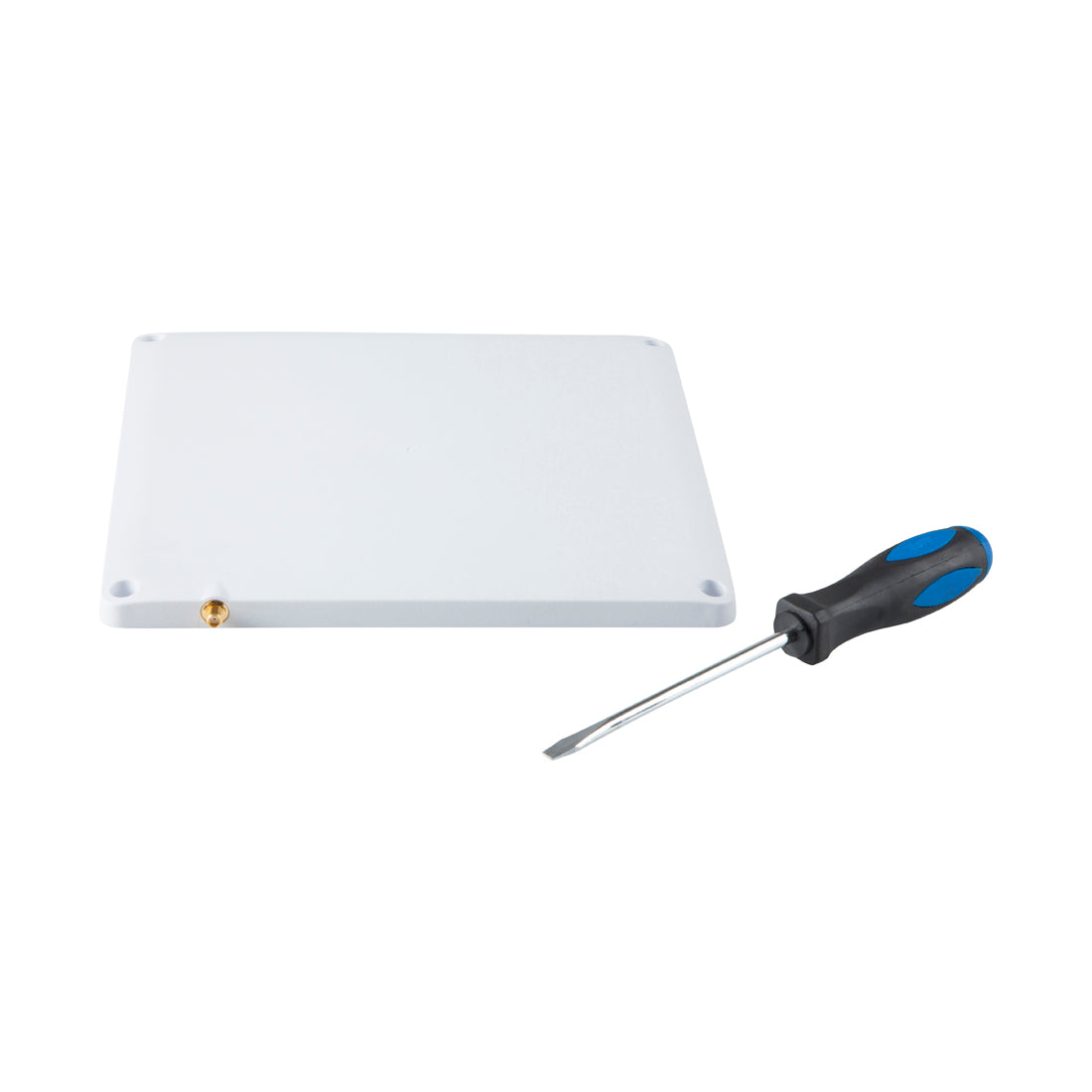

The R9028-LPF-SSF Circularly Polarized FCC outdoor RFID Antenna from RFMAX measures in at 10x10 inches. This unit operates at 8.5 dBic gain, covers 68 x 68 degrees beamwidth, and is THE LOWEST PROFILE antenna for passive UHF RFID applications in the FCC band of 902-928 Mhz. The unit carries a full IP67 rating, thus it is well suited for outdoor installations, and comes with a side-entry, standard SMA-Female Connector. There are mounting holes drilled in each of the 4 corners.

Please Note: This antenna is compatible with Rain RFID solution.

Description BlueArrow Created with Sketch.

The RFMAX R9028-LPF-SSF is the newest low-profile, flush mounting circularly polarized panel antenna for UHF RFID. The mounting profile of this antenna is smaller and more aesthetically pleasing than any other RFID antenna on the market today. This antenna was specifically designed by RFID professionals - for RFID professionals. The RFMAX engineers worked to design-in the very best UHF RFID performance in the smallest possible package.

FEATURES:

  • FCC UHF RFID Frequency: 902-928 Mhz
  • 902-928 MHz: 8.5 dBic Max Gain (1-2dB axial ratio)
  • Right Hand Circular Polarity, 68x68 Degree Beamwidth
  • Water/Dust Rating: IP67
  • Temp Range: -20to +70 C

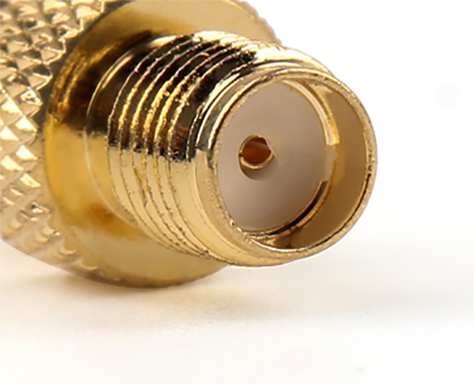

  • Fixed SMA-Female Connector
  • 4 corner mounting holes
  • VSWR: 1.3:1
