RG4A10STM

GPS+3G/4G/LTE No Drilling-Adhesive Mount Antenna for Dashboard/Windshield. 10 ft Cable & TNC Male

  • Out of stock
List Price: $80.00
GPS+3G/4G/LTE No Drilling-Adhesive Mount Antenna for Dashboard/Windshield. 10 ft Cable & TNC Male

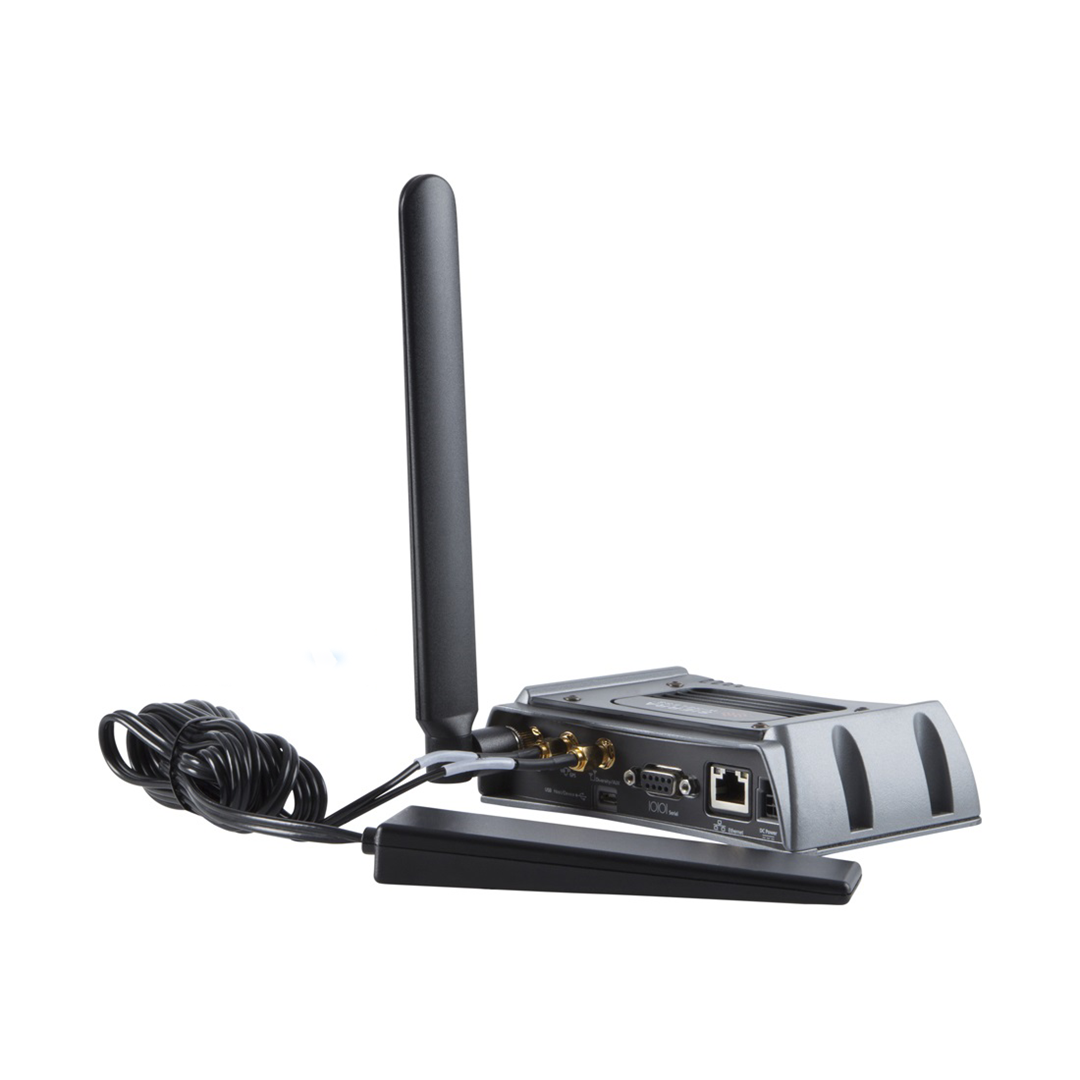

RG4A-10SSM on Modem with RDA698/2700SSM

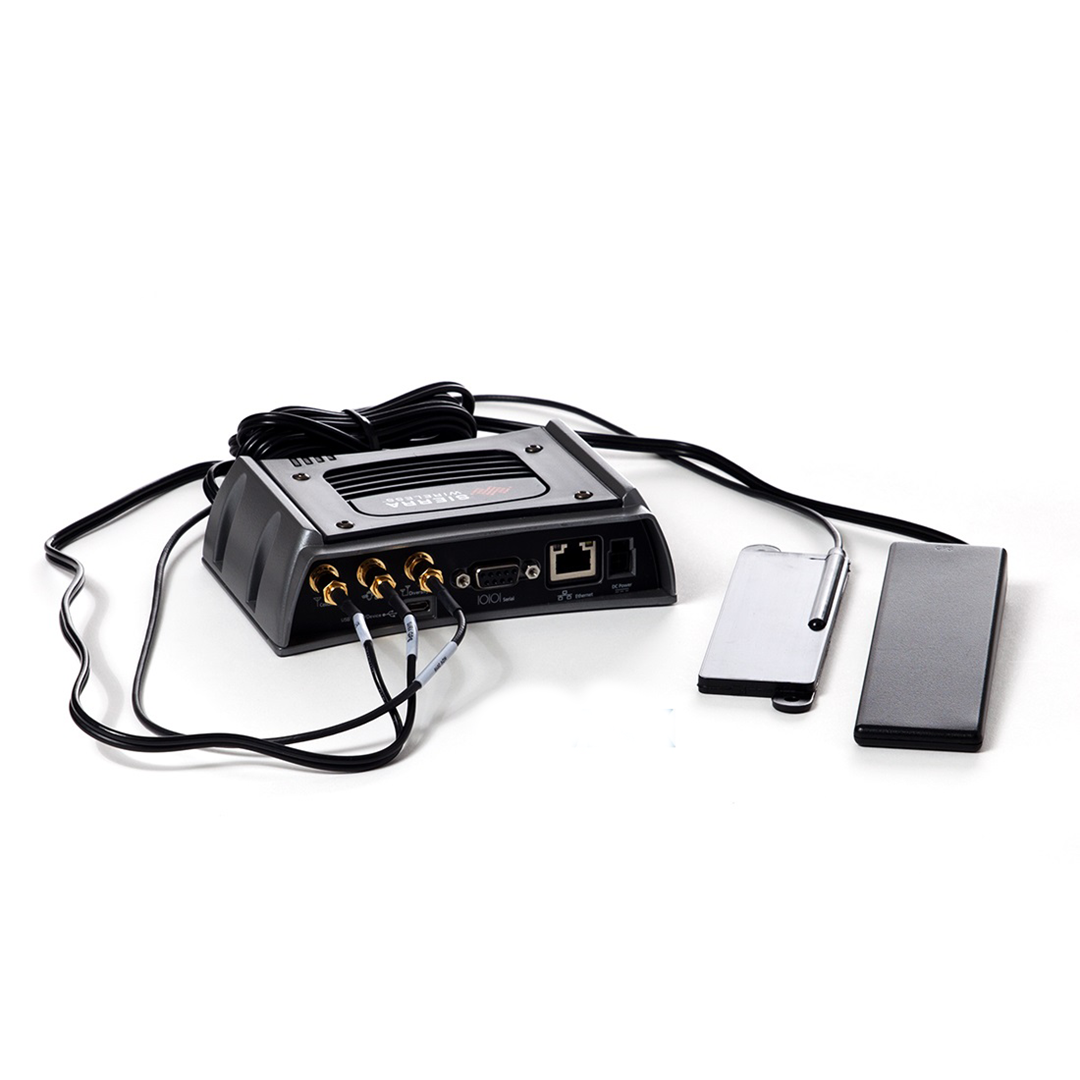

RG4A-10SSM on Modem, plus single LTE for MiMo

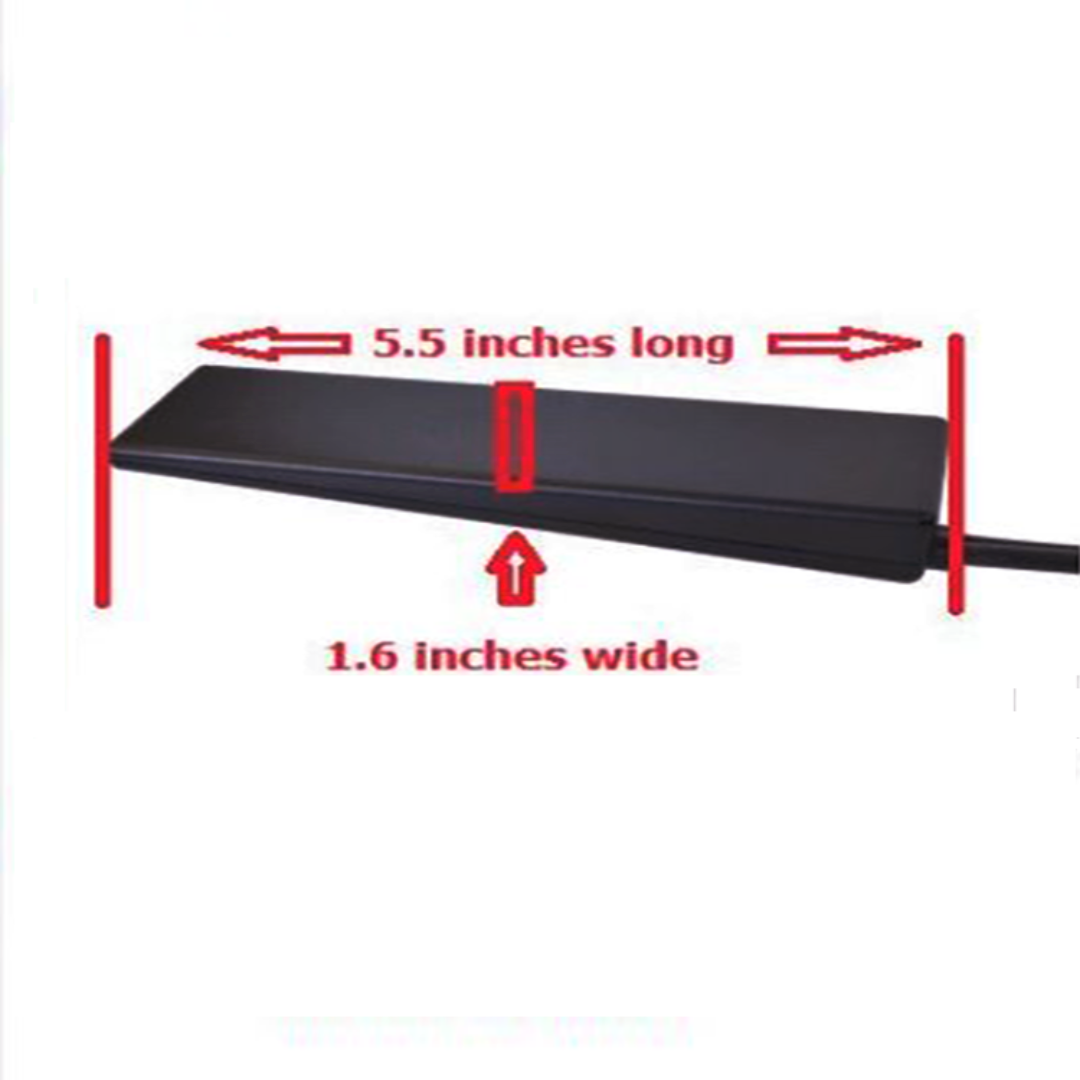

RG4A-10SSM - size
GPS+3G/4G/LTE No Drilling-Adhesive Mount Antenna for Dashboard/Windshield. 10 ft Cable & TNC Male
Grey_arrow@2x Created with Sketch.
Created with Sketch.
RG4A10STM

GPS+3G/4G/LTE No Drilling-Adhesive Mount Antenna for Dashboard/Windshield. 10 ft Cable & TNC Male

  • Out of stock
List Price: $80.00

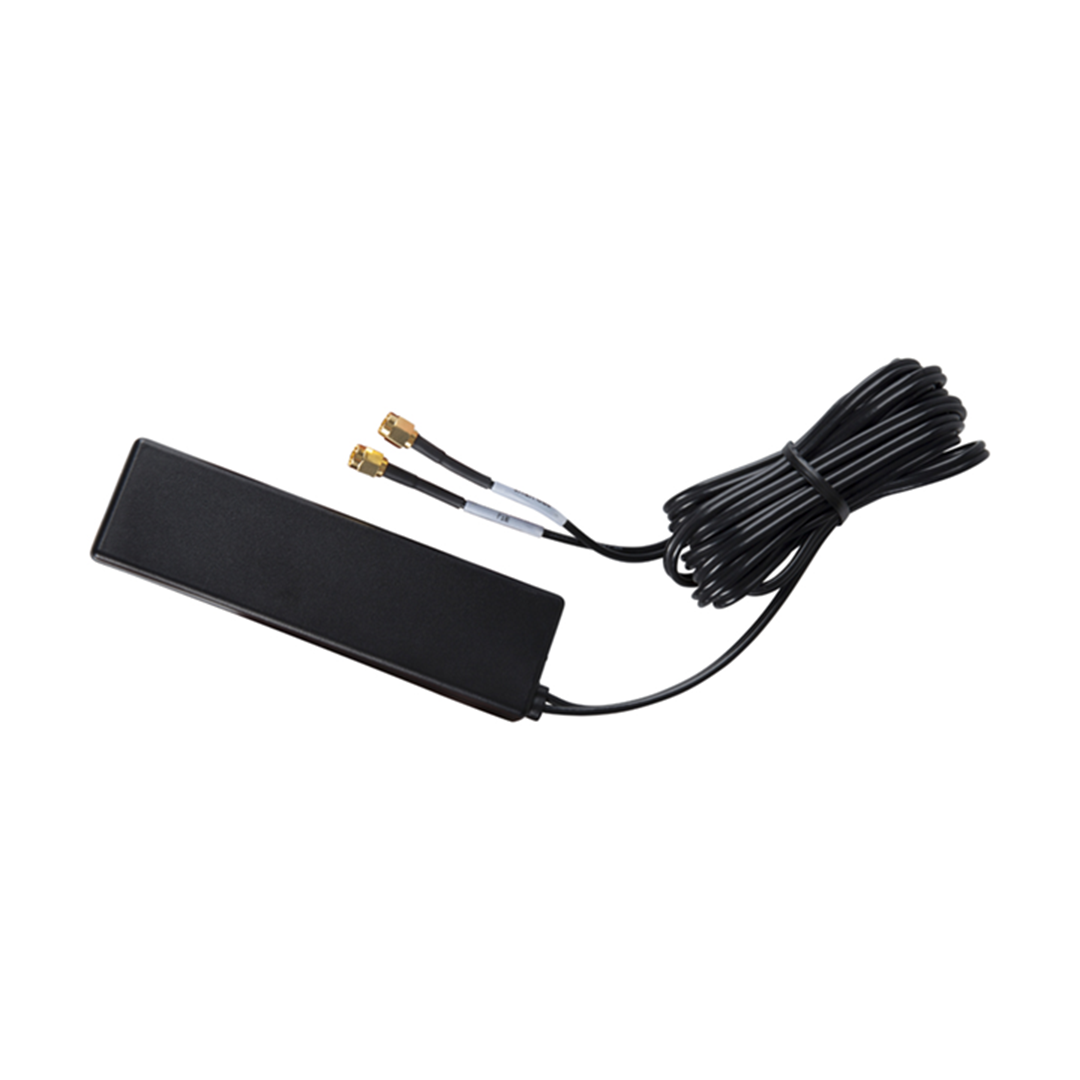

RG4A-10STM: No Drilling! Unit mounts using adhesive tape (included) with 10 foot RG174 cable & TNC Male connector. Perfect for leased vehicles. This unit offers very high-performance, customers love using it with their ruggedized tablets, cellular modems, etc.  Black, 2 in 1 combination LTE/Cellular+GPS covert strip style antenna for modems from the Sierra Wireless AirLink series (RV50, GX450, etc.) or Cradlepoint IBR series (IBR950, IBR1150, etc.) Operates at LTE/Cellular : 694-960/1700-2700 MHz & 1575.42 MHz GPS w/26 dB LNA.  The antenna has a 10 foot RG174 cable & TNC male connector.

Want to take advantage of MiMo 4G/LTE?  Simply add a 2nd Cellular antenna.

RD698/2700SSM: Paddle style di-pole antenna with SMA connector.

RSK-698-SSM-12: Slim blade style, dashboard or windshield mounted with SMA connector.

Description BlueArrow Created with Sketch.

The RFMAX RG4A-10STM is a 2-in-1 combination antenna for active 3.3 or 5 volt GPS & 3G/4G/LTE. This unit is meant to be used when the typical roof mount antennas are not practical due to mounting considerations, or when there is a desire for the antenna to be "covert." The unit has adhesive for mounting the antenna to a dashboard, or windshield.

  • No Drilling!  Excellent Choice for Leased Vehicles.
  • 3G/4G/LTE Cellular Frequencies: 695-960 & 1700-2700 Mhz
  • Cellular Antenna Gain: 2.5 dBi (2:1 VSWR)
  • GPS Frequency: 1575.42 MHz
  • GPS Antenna: LNA Gain: 26 db
  • Small, Covert Size: L=5.5 x W=1.5 Inches
  • Max Power: 30 Watts
  • Operating Temp: -40 to +85 C
  • Cables/Connectors: (2x) 10 foot RG174 wtih TNC Male
  • Want to Add a second LTE antenna to your Modem for MiMo? Use Part# RDA698/2700SSM or RSK-698-SSM-12



Specifications BlueArrow Created with Sketch.

color Black
frequency 694-960/1700-2700 MHz
